uniquename - 2012sep12
The sorry state of file managers on Linux (and my preliminary version of a Tk solution):
Most Linux users are well aware of the turmoil in the Linux 'distro' universe in the past few years (2010-2012) as major desktop systems such as Gnome and KDE have gone to major new versions (Gnome 3.x and KDE 4.x) that seem to be trying to imitate the Apple iPad approach of 'finger-tip based' (rather than 'mouse-based') interaction --- an approach based on a desktop flooded and overflowing with scrollable icons.
In the meantime, the 'high-end' Linux file managers (such as Gnome-Nautilus and KDE-Dolphin) are getting much less attention in areas of concern for mouse-users --- for users who need to use list-view rather than icon-view. The file managers are starting to experience some 'regressions' as a result.
As I have pointed out on the Contact Page of my freedomenv.com site [L6 ]:
"Sheez! There are more important things than imitating Apple 'surface effects', ubuntu-and-gnome-developer-people. You don't seem to appreciate what you have in Nautilus. In all the articles describing Gnome 3, I have seen nary a word on Nautilus. That just stinks. It's just really sad what these developers --- and the Linux pundits --- value most highly."
The file manager is the app that I use the most, in my login sessions. I probably open Nautilus file manager windows more often than I open web browser windows and email windows.
Some Argentinians have been concerned about the nice things of Gnome 2.x that have been jettisoned (or unappreciated and ignored) in Gnome 3.x. They have started a 'fork' of Gnome 2.x called MATE (MAH-tay) --- including a fork of the Nautilus file manager, which they call Caja (Spanish for box).
Unfortunately, they forked from a Gnome 2.x version that already had some 'regressions'. I have submitted bug-reports and feature-requests for Gnome-Nautilus and MATE-Caja. Links to these submittals can be seen near the bottom of a 'Linux Mint Debian Edition (LMDE) Install Notes' page [L7 ].
But I have little faith that Gnome 3.x and MATE developers will heed these suggestions/requests. And they will probably never make some of the underlying 'thumbnail-making-of-images', of the Gnome/MATE GUI's, an option for the user.
Hence, their systems will always suffer from 'processing bloat'. And hence many Linux users will probably continue to use the 'lighter-weight' Xfce and LXDE (Linux X Desktop Environment) desktops and their PCman and Thunar file managers. Unfortunately, those file managers do not have the 'Nautilus-scripts' capability.

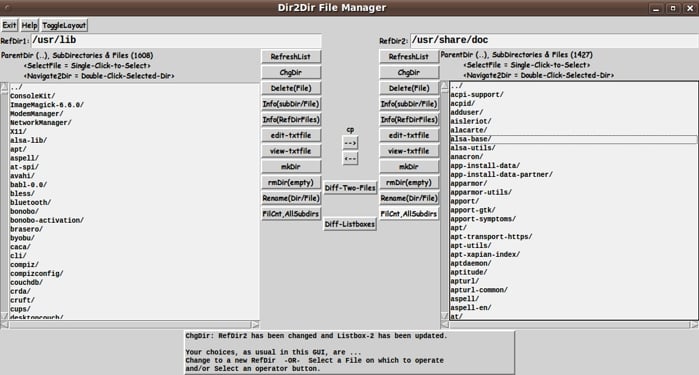

So I am starting my own file manager project. An early version of the GUI can be seen in the following screenshot image.
Click here [L8 ] to see the original image from which this reduced image was made.
The file lists of these 2 large directories --- /usr/lib and /usr/share/doc --- (about 1500 files each) came up in a fraction of a second. They take about 5 to 15 seconds (at least) with Nautilus, depending on the type of computer that I am on (and maybe depending on the Linux distro/kernel release).
It is pretty sad, but also quite fortunate, that I can make a file manager with a scripting language (Tcl-Tk) that is faster than the compiled file managers Nautilus and Dolphin.
I have done a search on terms like 'file manager' on this wiki and found TkMC at https://wiki.tcl-lang.org/7772 and FileManager at https://wiki.tcl-lang.org/17534 . The 'TkMC' GUI is a two-directory-paradigm file manager like an old 'Midnight Commander' file manager GUI --- thus the 'MC' in 'TkMC'.
I like the speed of these file managers in bringing up lists of filenames in large directories, but they lack the key feature that I need --- a Nautilius-scripts-type capability --- the capability to apply a script (from a hierarchical directory structure of utility scripts) to one or more selected files. And they certainly lack the polish and depth-of-support of the Nautilus and Dolphin file managers.
I have also looked at other Tk file managers referred to in these pages (FileRunner, TOXfile, filerusher, sfm, tkdesk, tkfichier), but most of them are no longer being maintained and several of them require Tk extensions or compilation of libraries.
All of these Tk file managers are unsuitable for me because they do not have the capability to blend in with my Tk software systems (feHandyTools, feAppMenus, xpg) --- and they do not include the 'Nautilus-scripts' capability. Rather than taking their code and re-writing them to allow for setting 'compatible' color-schemes and fonts and widget-geometry --- and adding the Nautilus-scripts capability, I have decided to start from my own code base.
Perhaps I will look at the Tk code of some of these other file managers, say, when I am looking for techniques to use in implementing copy/cut-and-paste or drag-and-drop (someday?) --- or when I am looking for a way to handle 'broken' symlinks --- or how to handle symlinks (symbolic links, a.k.a. 'soft links') when they point to directories and when they point to 'regular' files.
The 'dir2dir' file manager (image above) is a 'Midnight Commander' kind of interface --- two directory listings shown side-by-side. Actually, I based the interface on the old 'WS_FTP' interface of an MS Windows FTP client that used to be available for free, in a 'lite' version.
Another app with an interface in that category (a 'dual directory' interface) is the 'Filezilla' FTP client that is available on Linux and that I use almost daily to maintain my web pages.
I actually had an old 'host2host' Tk script that I devised around 1999, to allow for viewing directories on different SGI/IRIX (Unix) hosts, via the 'rsh' (remote shell) command.
I have taken that script and removed all the 'rsh' stuff (and the pair of host names capability) to make the starter code base for the 'dir2dir' Tk script.
NOTE1: If you are in an 'enterprise-type' environment with directory structures on remote file server disk drives NFS-mounted to your local workstation, then the 'dir2dir' file manager will be able to traverse and operate on the remote files. Through the magic of the Sun-Microsystems-developed NFS (Network File System) software, hierarchical directory structures on remote disk drives can be accessed AS IF they are on disk drives that are connected locally to your workstation.
NOTE2: The nice thing about the 'rsh stuff' was that it allowed the 'host2host' Tk GUI to show the files on a remote host even if the files were not NFS-mounted to your machine. It did this by running the command 'rsh ls -Ap' on the remote host to fill the listbox in the 'host2host' GUI running on your local machine. The only requirement was that you had to have the necessary permissions (.rhosts file setup) to run 'rsh' on the remote host.
The 'dir2dir' Tk GUI script runs the 'ls -Ap' command on your local host to show the files on locally connected disk drives, or files that are NFS-mounted to your local host.
The GUI image above is incomplete. I will be adding a 'Scripts...' button to the 2 'button stacks' on the 'dir2dir' GUI. I have the Tcl-Tk code for the 'select-file(s)-and-apply-a-script' capability already --- in the 'feHandyTools' system, in a file-selector GUI, similar in function to 'tk_getOpenFile', but with the added apply-a-script-to-selected-file(s) capability. I just need to incorporate that code into this 'dir2dir' GUI.
I will probably replace the 'cp' label in the middle of the GUI with a couple of 'cp' (copy) and 'mv' (move) radiobuttons.
I also plan to add a 'ToggleScrollbars' button (to change left-right location of vertical scroll bars) alongside the 'ToggleLayout' button (which changes left-right location of the 2 button-stacks). And I may add 'ChgColor', 'ChgFont',and 'Embellish' buttons to the top of the GUI.
In any case, when I get those enhancements into 'dir2dir', I will need to test it out with almost daily use over several months before releasing it into the 'feHandyTools' system as a 'production capable' system. And even then, the usual warnings and disclaimers will need to be added.
The bottom line is that I hope to have a quite capable and reliable release of 'dir2dir' available in the 2013 to 2014 time frame.
END OF 'Linux File Managers' 2012sep update.
